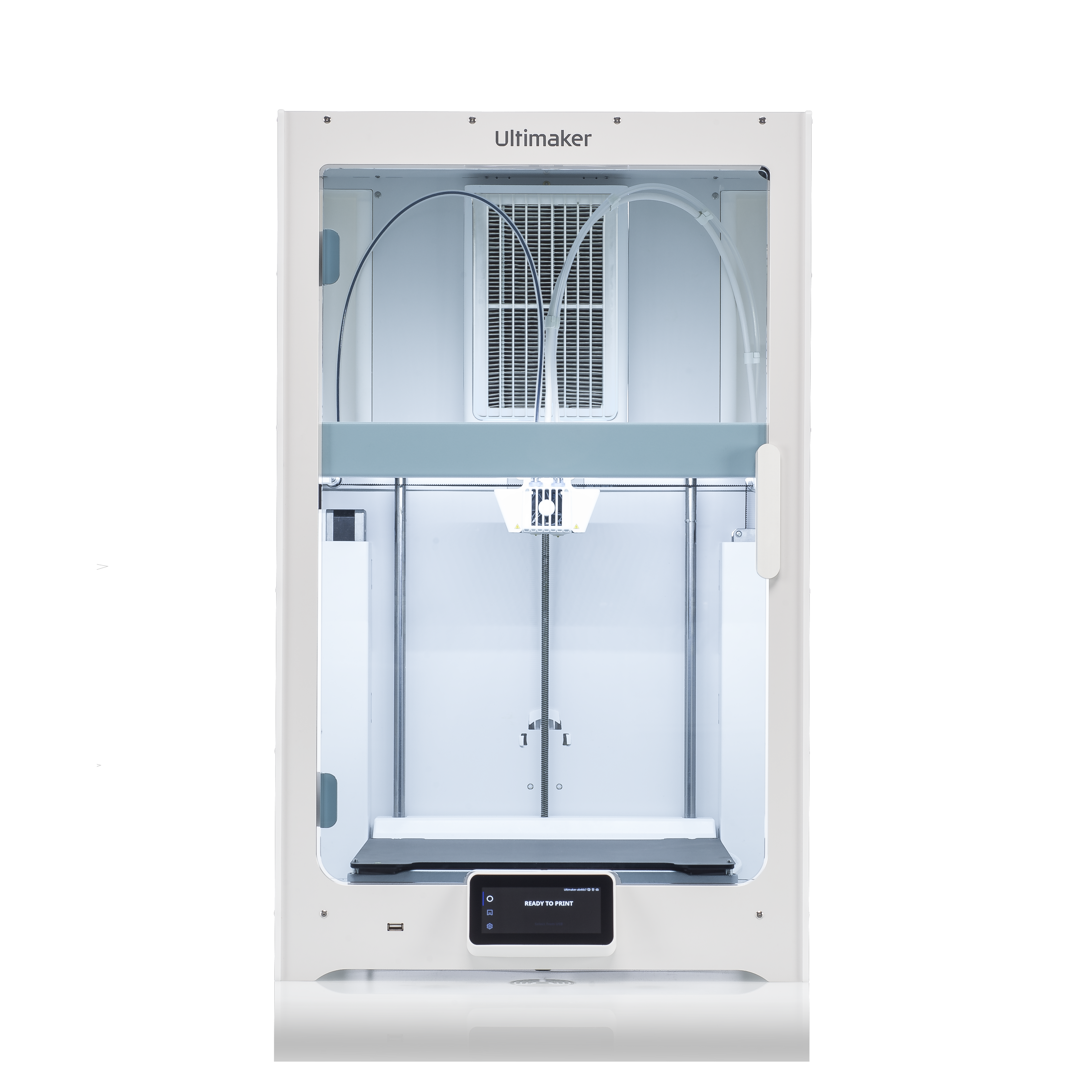

ULTIMAKER S7
"RIGHT THE FIRST TIME" PROFESSIONAL 3D PRINTING
The UltiMaker S7 3D Printer produces high-quality parts and models more easily and reliably—from the first layer to the last—for an accessibly enhanced professional 3D printing experience.
Key Features of the UltiMaker S7 3D Printer:
- Integrated Air Manager
- Inductive Sensor Bed Leveling
- PEI Coated Flexible Build Plate
- High-Definition On-Board Camera
- Print Head Anti-Flood Sensor
- Bed Tilt Compensation
- 5 GHz Wi-Fi Compatibility
EFFORTLESS EASE OF USE
Succeeding with a wide variety of materials is easy and effortless with the UltiMaker S7 3D Printer.
- Includes flexible build plate for simple and quick removal of prints
- PEI-coated plate allows for more compatibility of materials and less need for additional adhesive to succeed
- Compatible with swappable print cores to easily accommodate to any application need
STREAMLINED SETUP OUT OF THE BOX
Installing the UltiMaker S7 out of the box takes a quick 30 minutes and gets you ready to print in minutes thanks to all the thoughtful improvements to the setup process.
- Patent-pending technology automatically aligns the build plate every time
- Utilizes hardware and firmware-assisted automation in the calibration process
- Ultimaker S7 arrives fully-assembled
ACCESSIBLE FIRST-TIME-RIGHT SUCCESS
A good first layer adhesion is fundamental to successful 3D printing and the UltiMaker S7 makes it achievable for a wider audience using a combination of the latest advanced technologies.
- Inductive sensor probes the bed with high dimensional accuracy
- Automatic tilt compensation retires need for manual thumbscrew bed calibration
- Onboard camera mounted high for a great view of the first layers
OPTIMAL PRODUCTION WORKFLOW
The UltiMaker S7 utilizes the latest technology and designs to optimize your production workflow for an enhanced professional 3D printing experience.
- 1080p camera for high-definition monitoring of prints
- Added 5 GHz Wi-Fi compatibility for improved network stability
- Integrated carrying handles designed for safe portability
- Anti-Flood Sensor increases protection against potential costly maintenance
PUTTING THE "PRO" IN PRODUCTIVE
The UltiMaker S7 Pro maximizes productivity by combining with the Material Station—the accessory designed to simplify and automate the material handling process.
- Holds up to 6 spools of material
- Automatically loads materials into printer
- Reduces instances of running out of material in the middle of a print job
- Controls humidity within Station's chamber for optimal filament conditions
ULTIMATE ULTIMAKER CONNECTIVITY
Whether it's hardware, software, or materials, the UltiMaker S7 is integrated across the entire extensive UltiMaker Platform for a seamless experience with the existing ecosystem.
- Securely manage & monitor prints with UltiMaker Digital Factory
- Access e-learning courses on UltiMaker Academy
- Choose from hundreds of materials and plugins in the UltiMaker Marketplace
Ultimaker S7 Specifications
WHAT ARE THE TECHNICAL SPECIFICATIONS OF THE ULTIMAKER S7 3D PRINTER?
| PRINTER/PRINTING PROPERTIES | |
|---|
| Technology | Fused Filament Fabrication (FFF) |
| Assembly | Fully-Assembled |
| Made in | Netherlands / USA |
Build Volume
(XYZ) | 330 x 240 x 300mm
(13" x 9.4" x 11.8") |
| Layer Resolution | 0.25mm Nozzle: 150 - 60 micron
0.4mm Nozzle: 200 - 20 micron
0.6mm Nozzle: 300 - 20 micron
0.8mm Nozzle: 150 - 20 micron |
| XYZ Resolution | 6.9, 6.9, 2.5 micron |
| Build Speed | < 24mm3/s |
| Print Head | Dual Extrusion |
| Tool Head System | Swappable Print Cores |
| Includes Auto-Nozzle Lifting System | Yes |
| Includes Material Flow Sensor | Yes |
| Build Plate | Double-sided PEI Coated Flexible Build Plate (20 - 140°C) |
| Air Manager | EPA filter - Independently tested according to UL2904
(Standard Method for Testing and Assessing Particle
and Chemical Emissions from 3D Printers) with
UltiMaker materials and corresponding Cura print
profiles |
| Nozzle Diameter | 0.4mm (included)
0.25mm, 0.6mm, 0.8mm (sold separately) |
| Operating Sound | < 50 dBA |
| Connectivity | WiFi / Ethernet / USB / cloud |
| LCD Screen | Interactive Touchscreen |
| On-board Camera | Built-in |
| Camera Resolution | High Definition |
|
Material Station's Feeder Type
(included w/ Pro Bundle) | Dual-geared, Abrasion-resistant |
|
Material Station's Spool Bays
(included w/ Pro Bundle) | 6 with NFC Recognition |
| |
|---|
| PHYSICAL DIMENSIONS | |
|---|
Dimensions (w/ spool holder)
(W × D × H) | Printer Only
495mm x 585mm x 780mm
(19.5" × 23" × 30.7")
Pro Bundle
495mm x 500mm x 1190mm
(19.5" x 19.7" x 46.9") |
| Net Weight | Printer Only
29.1kg (64.2 lbs)
Pro Bundle
46.7kg (103 lbs) |
| |
|---|
| SOFTWARE | |
|---|
| Free Supplied Software | UltiMaker Personal (plus UltiMaker Cura for individuals)
Essentials (for organizations - includes UltiMaker Cura
Enterprise) |
| Supported File Types | STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG |
| Output File Types | G, GCODE, GCODE.gz, UFP |
| OS compatibility | MacOS, Windows, and Linux |
| |
|---|
| WARRANTY | |
|---|
| Warranty Period | 12 Months - (Enhanced Service Plans Upgrade Available) |
 |
 |
 |
 |
 |
UltiMaker S7
Perfect first layers with faster print removal and integrated air filtration. |
UltiMaker S5
More space for bigger 3D prints with the widest choice of materials. |
UltiMaker S7
Pro Bundle
The ultimate 3D printing workflow with automatic material handling. |
UltiMaker S3
Composite-ready dual extrusion that fits easily on your desk. |
UltiMaker 2+
Connect
Workhorse single extrusion in our most affordable 3D printer. |
| Build volume (XYZ) |
Build volume (XYZ) |
Build volume (XYZ) |
Build volume (XYZ) |
Build volume (XYZ) |
| 330 x 240 x 300 mm |
330 x 240 x 300 mm |
330 x 240 x 300 mm |
230 x 190 x 200 mm |
223 x 220 x 205 mm |
| Build chamber |
Build chamber |
Build chamber |
Build chamber |
Build chamber |
Fully enclosed
Passively heated |
Partly enclosed
Passively heated |
Fully enclosed
Passively heated |
Partly enclosed
Passively heated |
Passively heated |
| Build plate |
Build plate |
Build plate |
Build plate |
Build plate |
| Flexible steel |
Glass |
Flexible steel |
Glass |
Glass |
| Extrusion |
Extrusion |
Extrusion |
Extrusion |
Extrusion |
| Bowden dual extrusion |
Bowden dual extrusion |
Bowden dual extrusion |
Bowden dual extrusion |
Bowden single extrusion |
| Print cores & nozzles |
Print cores & nozzles |
Print cores & nozzles |
Print cores & nozzles |
Print cores & nozzles |
Swappable print cores
Optional composite |
Swappable print cores
Optional composite & metal |
Swappable print cores
Optional composite |
Swappable print cores
Optional composite & metal |
Swappable nozzle |
| Compatible materials |
Compatible materials |
Compatible materials |
Compatible materials |
Compatible materials |
| 280+ |
280+ |
180+ |
190+ |
20+ |
| Spool holder |
Spool holder |
Spool holder |
Spool holder |
Spool holder |
| NFC-enabled for 2 spools |
NFC-enabled for 2 spools |
NFC, humidity control for 6 spools |
NFC-enabled for 2 spools |
For 1 spool |
| Air filtration |
Air filtration |
Air filtration |
Air filtration |
Air filtration |
| Integrated Air Manager |
Optional Air Manager |
Integrated Air Manager |
- |
Optional Air Manager |
When you buy an Ultimaker S7 you will receive:UltiMaker S7 3D Printer
1 x 0.4 AA Print Core (installed)
1 x 0.4 BB Print Core (installed)
Additional 0.4 AA Print Core
PEI Coated Flexible Build Plate
Spool Holder with Material Guide
Power Adapter & Cable
Ethernet Cable
USB Stick
Nozzle Cover
Tough PLA Filament (750g)
PVA Soluble Support Filament (750g)
Oil & Grease for Maintenance
Hex Screwdriver (2 mm)
XY Calibration Sheet
Quick Start Guide
Safety & Warranty Booklet
