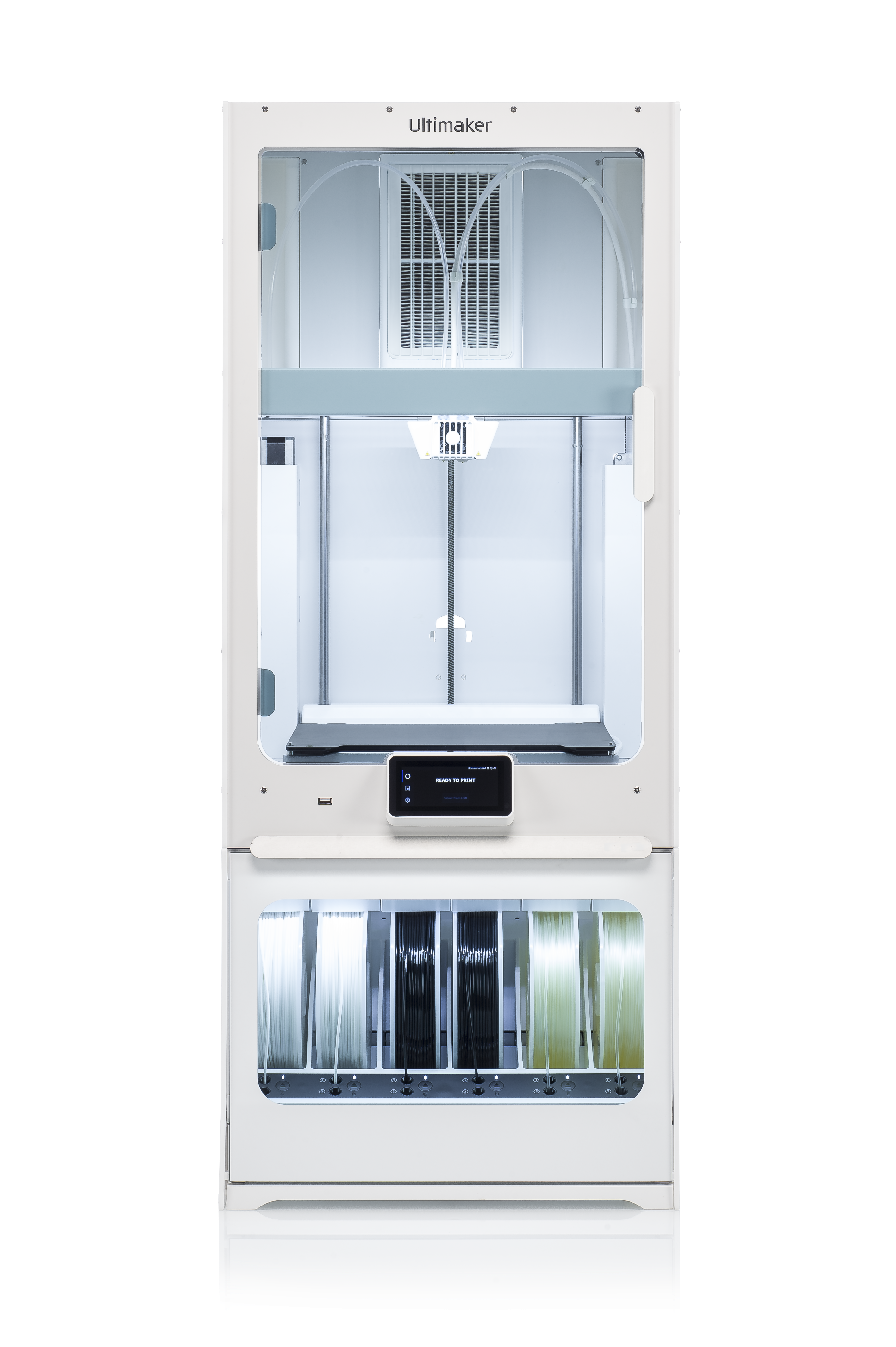

UltiMaker S7 Pro Bundle

Price: $11,500.00

Quantity:

ULTIMAKER S7 PRO BUNDLE

Unleash true 24/7 3D printing.

Transform the UltiMaker S7 into a manufacturing powerhouse. With 3x the material capacity. Automated filament handling. Humidity-controlled storage.

Key Features of the UltiMaker S7 Pro Bundle:

PEI-coated flexible build plate
Integrated Air Manager
More accurate inductive probing
Click and print with 280+ materials

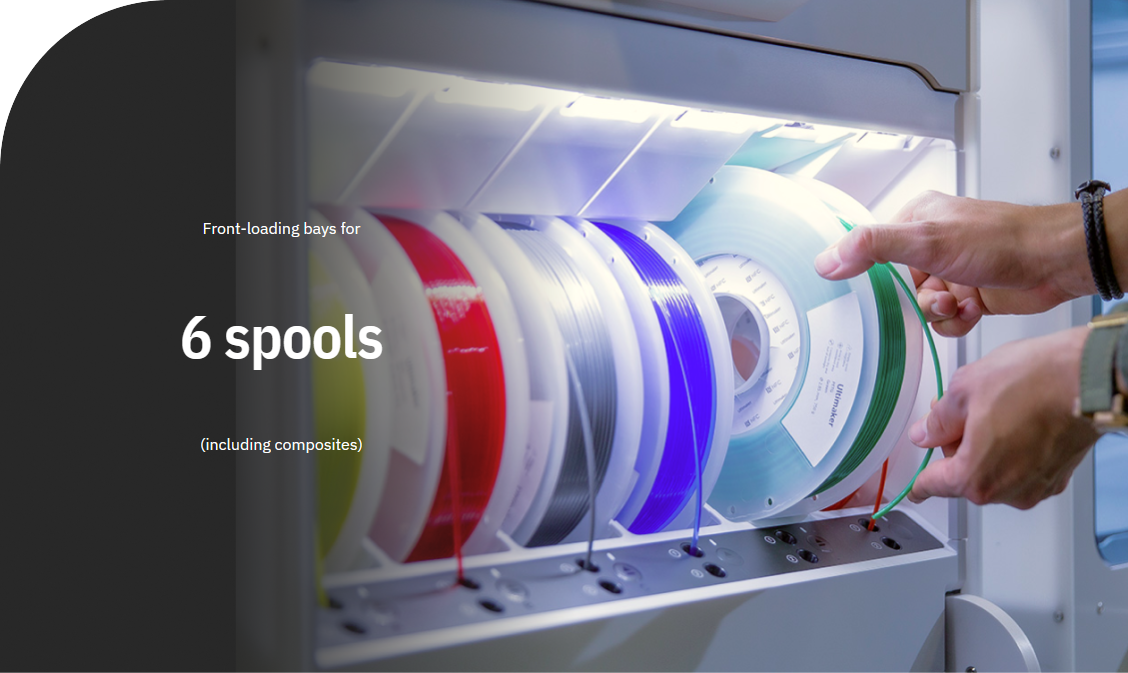

All the uptime in the world.		Automatic material handling Designed to be left unattended, the Material Station allows the UltiMaker S7 to 3D print longer – day or night. Loading material into the Material Station takes seconds – not minutes. Simply open the door and drop the spool into a bay. During a print, any spool not in use can be switched out.

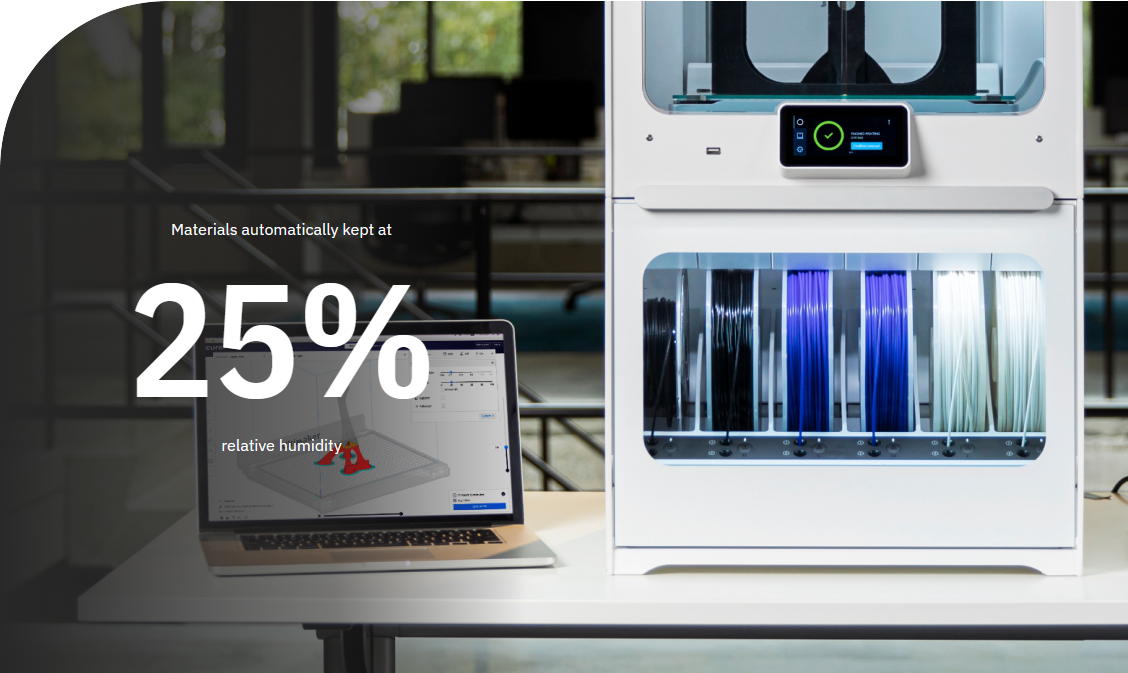

3D print more materials. More easily.		Hassle-free storage Every spool is kept below 25% relative humidity, making it easy to realize more 3D printing applications with almost any combination of polymers and abrasive composites. Each of the Material Station's material bays have NFC readers and reinforced pre-feeders for integration with UltiMaker Cura and Digital Factory.

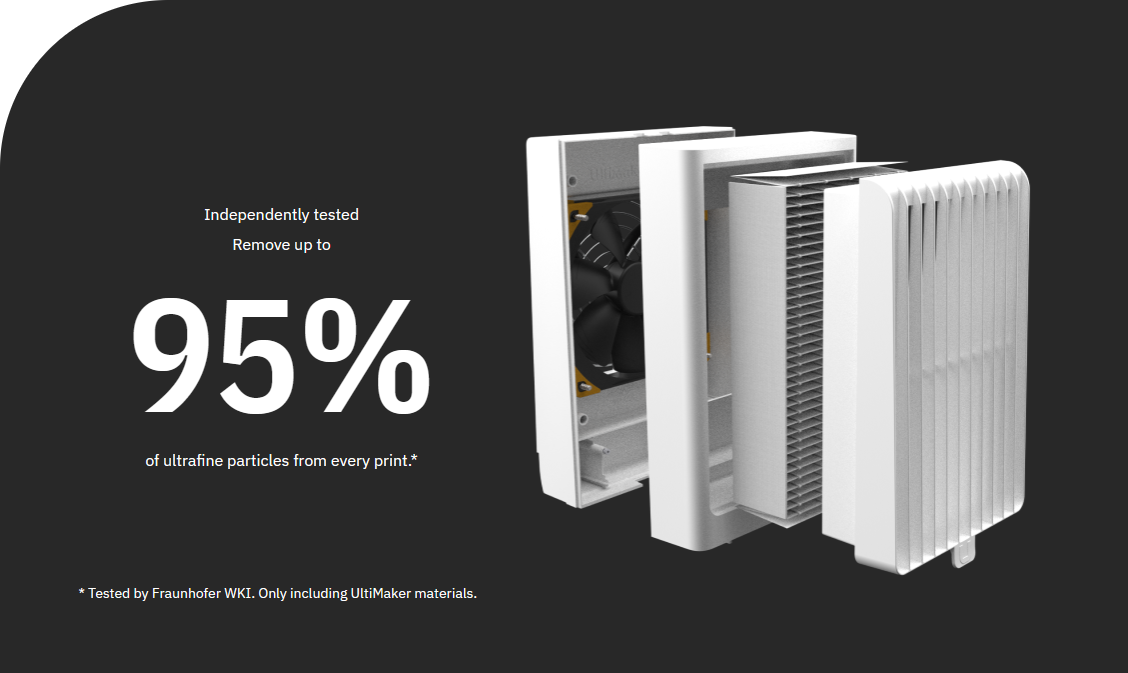

Easy printing. Easy breathing.		Integrated Air Manager Not only does this increase air quality peace of mind... It also boosts print quality thanks to its fully enclosed build chamber and single glass door.

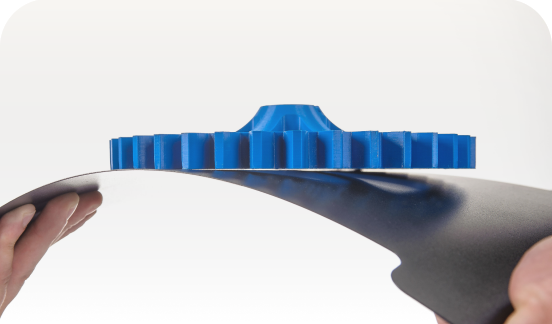

Flexible build plate

A unique PEI coating allows quick and easy print removal, without the need for glue. Then snap it securely back in place for a huge increase productivity.

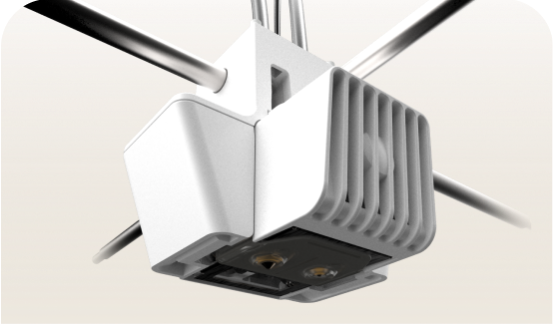

Inductive sensor

Probes the build plate with less electrical noise and more accuracy. Now you can truly start a print and walk away – confident in a perfect first layer.

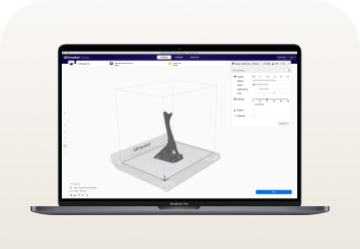

Cura integration

Access the UltiMaker Cura features that speed up your workflow and increase print success – like intent profiles, easy remote printing, and more.

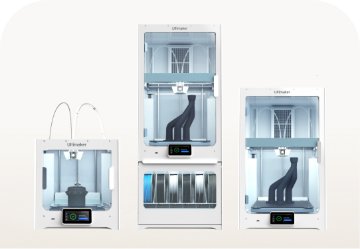

Backwards file compatibility

If you own an UltiMaker S5, your entire digital library of S5 print files will work flawlessly on the S7 – with no reslicing needed.

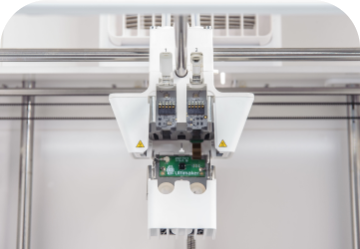

Anti-flood sensor

The redesigned print head detects potential flooding earlier. It also includes stronger magnets to ensure the print core door stays closed.

UltiMaker S7 Pro Bundle Specs

Dimensions
Build volume 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)

Assembled dimensions W 495 x D 585 x H 800 mm (W 19.5 x D 23 x H 31.5 inches)

Print technology Fused Deposition Modeling (FDM)

Compatible filament diameter 2.85 mm

Weight 49.1 kg (92.4 lbs)

Maximum power output 500 W

Dimensional accuracy ± 0.15 mm ± 0.15% feature nominal length*

Extrusion flow Up to 35 mm3/s

XY speed, acceleration, jerk Up to 500 mm/s, up to 50.000 mm/s2, up to 100.000.000 mm/s3

Printer properties
Layer resolution 0.25 mm nozzle: 150 - 60 micron, 0.4 mm nozzle: 200 - 20 micron, 0.6 mm nozzle: 300 - 20 micron, 0.8 mm nozzle: 600 - 20 micron

XYZ resolution 6.9, 6.9, 2.5 micron

Feeder type Dual-geared feeder, reinforced for composite materials

Display 4.7-inch (11.9 cm) color touchscreen

Print core replacement Swappable print cores

Print head Dual extrusion print head with an auto-nozzle lifting system, swappable print cores, and flood detection.

Nozzle diameters 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm

Operation parameters
Filter technology Replaceable EPA filter

Air extraction rate 1 - 50 m³/h (35 m³/h nominal rate for most materials at 23 °C)

Nozzle temperature 180-280 °C

Nozzle heat-up time < 2 minutes

Operating sound < 51 dBA

Build plate leveling Advanced active leveling with more accurate inductive sensors

Build plate PEI-coated flexible steel build plate

Build plate heat-up time < 5 minutes (from 20 to 60 °C)

Operating ambient temperature 15 - 32 °C (59 - 90 °F)

Non-operating temperature 0 - 32 °C (32 - 90 °F)

Ecosystem
Supplied free software UltiMaker Cura – print preparation software UltiMaker Digital Factory – All-in-one cloud-based print, printer and user management software

Supported OS MacOS, Windows, and Linux

Plugin integration SolidWorks, Siemens NX, Autodesk Inventor

Supported file types UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP

File transfer Wi-Fi (2.4 & 5 GHz), Ethernet, USB

Safety and compliance
Certification CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use

More information Learn more about UltiMaker S7 safety and compliance.


UltiMaker S7 Perfect first layers with faster print removal and integrated air filtration.	UltiMaker S5 More space for bigger 3D prints with the widest choice of materials.	UltiMaker S7 Pro Bundle The ultimate 3D printing workflow with automatic material handling.	UltiMaker S3 Composite-ready dual extrusion that fits easily on your desk.	UltiMaker 2+ Connect Workhorse single extrusion in our most affordable 3D printer.
Build volume (XYZ)	Build volume (XYZ)	Build volume (XYZ)	Build volume (XYZ)	Build volume (XYZ)
330 x 240 x 300 mm	330 x 240 x 300 mm	330 x 240 x 300 mm	230 x 190 x 200 mm	223 x 220 x 205 mm
Build chamber	Build chamber	Build chamber	Build chamber	Build chamber
Fully enclosed Passively heated	Partly enclosed Passively heated	Fully enclosed Passively heated	Partly enclosed Passively heated	Passively heated
Build plate	Build plate	Build plate	Build plate	Build plate
Flexible steel	Glass	Flexible steel	Glass	Glass
Extrusion	Extrusion	Extrusion	Extrusion	Extrusion
Bowden dual extrusion	Bowden dual extrusion	Bowden dual extrusion	Bowden dual extrusion	Bowden single extrusion
Print cores & nozzles	Print cores & nozzles	Print cores & nozzles	Print cores & nozzles	Print cores & nozzles
Swappable print cores Optional composite	Swappable print cores Optional composite & metal	Swappable print cores Optional composite	Swappable print cores Optional composite & metal	Swappable nozzle
Compatible materials	Compatible materials	Compatible materials	Compatible materials	Compatible materials
280+	280+	180+	190+	20+
Spool holder	Spool holder	Spool holder	Spool holder	Spool holder
NFC-enabled for 2 spools	NFC-enabled for 2 spools	NFC, humidity control for 6 spools	NFC-enabled for 2 spools	For 1 spool
Air filtration	Air filtration	Air filtration	Air filtration	Air filtration
Integrated Air Manager	Optional Air Manager	Integrated Air Manager	-	Optional Air Manager

When you buy an UltiMaker S7 Pro Bundle you will receive:

UltiMaker S7 3D Printer
UltiMaker S7 Material Station

Accessory Items:

PEI Coated Flexible Build Plate
Spool holder with material guide
Power adapter and cable
Ethernet Cable
USB Stick
1 x 0.4 AA Print Core (installed)
1 x 0.4 BB Print Core (installed)
1 x Additional 0.4 AA Print Core
XY Calibration Sheet

Documentation

Quick Start Guide
Safety & Warranty Booklet

Tools & maintenance:

Nozzle Cover (3x)
Oil
Grease
Hex screwdriver 2 mm

Materials

Spool Tough PLA Filament (750g)
Spool PVA Soluble Support Filament (750g)

UltiMaker S7 Pro Bundle Specs
Dimensions	Build volume	330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
	Assembled dimensions	W 495 x D 585 x H 800 mm (W 19.5 x D 23 x H 31.5 inches)
	Print technology	Fused Deposition Modeling (FDM)
	Compatible filament diameter	2.85 mm
	Weight	49.1 kg (92.4 lbs)
	Maximum power output	500 W
	Dimensional accuracy	± 0.15 mm ± 0.15% feature nominal length*
	Extrusion flow	Up to 35 mm3/s
	XY speed, acceleration, jerk	Up to 500 mm/s, up to 50.000 mm/s2, up to 100.000.000 mm/s3
Printer properties	Layer resolution	0.25 mm nozzle: 150 - 60 micron, 0.4 mm nozzle: 200 - 20 micron, 0.6 mm nozzle: 300 - 20 micron, 0.8 mm nozzle: 600 - 20 micron
	XYZ resolution	6.9, 6.9, 2.5 micron
	Feeder type	Dual-geared feeder, reinforced for composite materials
	Display	4.7-inch (11.9 cm) color touchscreen
	Print core replacement	Swappable print cores
	Print head	Dual extrusion print head with an auto-nozzle lifting system, swappable print cores, and flood detection.
	Nozzle diameters	0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
Operation parameters	Filter technology	Replaceable EPA filter
	Air extraction rate	1 - 50 m³/h (35 m³/h nominal rate for most materials at 23 °C)
	Nozzle temperature	180-280 °C
	Nozzle heat-up time	< 2 minutes
	Operating sound	< 51 dBA
	Build plate leveling	Advanced active leveling with more accurate inductive sensors
	Build plate	PEI-coated flexible steel build plate
	Build plate heat-up time	< 5 minutes (from 20 to 60 °C)
	Operating ambient temperature	15 - 32 °C (59 - 90 °F)
	Non-operating temperature	0 - 32 °C (32 - 90 °F)
Ecosystem	Supplied free software	UltiMaker Cura – print preparation software UltiMaker Digital Factory – All-in-one cloud-based print, printer and user management software
	Supported OS	MacOS, Windows, and Linux
	Plugin integration	SolidWorks, Siemens NX, Autodesk Inventor
	Supported file types	UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP
	File transfer	Wi-Fi (2.4 & 5 GHz), Ethernet, USB
Safety and compliance	Certification	CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use
	More information	Learn more about UltiMaker S7 safety and compliance.
