Reliable 3D printing – Tailored to your needs
Ultimaker 2+ is designed to perform. Reliable, consistent, and user-friendly, it’s suitable for a limitless variety of applications, from functional prototypes to customized tools. It supports a wide range of materials and delivers powerful, first-class results with every print.
When you buy an Ultimaker 2 Extended+ you will recieve:
- Ultimaker 2+ Extended 3D Printer
- Swappable 0.25, 0.40, 0.60, 0.80 mm nozzles
- 0.75kg spools of Ultimaker Silver PLA
- SD Card and USB Cable
- Glue stick, grease, hex wrenches, calibration card, and more!
Consistency and quality
Designed by experts and enriched by our global
community, Ultimaker 2+ performs even complex
3D printing tasks with ease. It’s particularly effective
for printing bridging, overhangs, and accurate details,
enabling users to create high-quality, consistent
results, tailored to their business.
Unrivaled results
With a powerful print head, large build volume and up to 20 micron layer resolution, Ultimaker 2+ delivers outstanding results, whilst remaining compact enough to fit on your desktop.
Geared feeder
The geared feeder places more pressure on the filament, whilst reducing heat exposure from the motor. This improves grip and boosts torque (which eliminates filament skipping in the extruder motor), and filament can be easily removed or inserted by using the griprelease button.

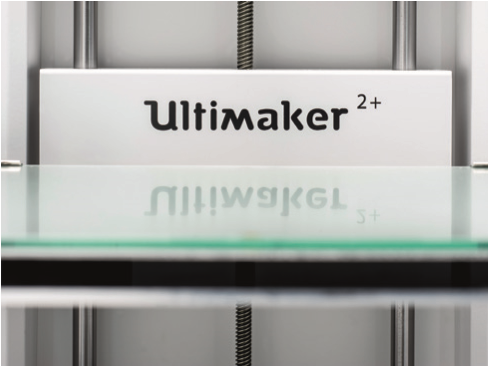

Heated glass build plate
Ultimaker 2+ features a stiff glass build plate, designed to produce superior results. It’s heated, enabling users to print with a wider range of materials, and is removable, for easy print access.

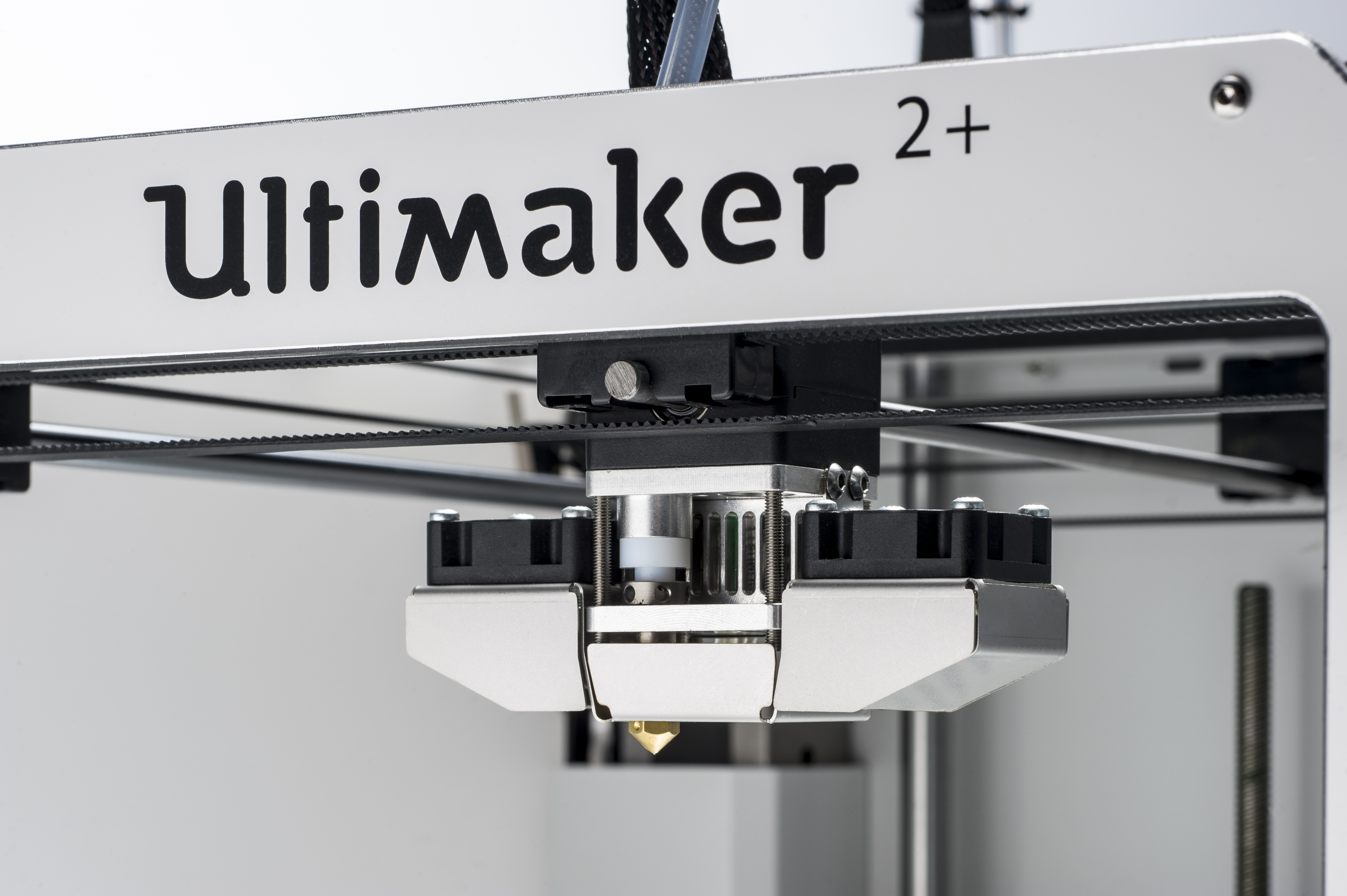

Efficient cooling
Powerful fans create optimized airflow for efficient cooling. Fancaps aim the air directly below the nozzle and equally from both sides, resulting in high-quality bridging, smooth surfaces, and fast prints.
Optimized Cura material profiles
Ultimaker’s open source slicing software is free to use and renowned for producing remarkable results. The extensively tested preconfigured profiles ensure great print success rates. Users can customize values in a couple of clicks, creating a fully bespoke 3D printing experience.
Cost-effective, customized functional prototypes

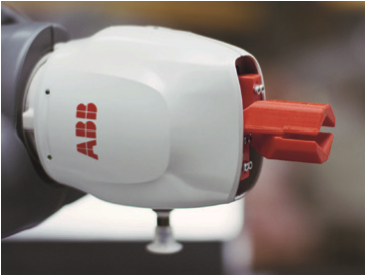

ABB Robotics is a global leader in the field of power and automation technologies, creating industrial robots for the automotive, electronics, and manufacturing industries. By using 3D printing technology, ABB Robotics experienced dramatic improvements. Engineering was reduced to 1-4 hours per finger (with an average cost of $427), and productivity was boosted. The company can now use previously designed fingers, or design and print new ones in the same day. ABB Robotics estimate they’ve saved over $100,000 by purchasing just one Ultimaker 2+.
Ultimaker 3’s integrated system of hardware, software, and
materials ensures a smooth, straightforward workflow, not to mention
unparalleled results. The innovative dual-core print head features print cores
for build and support materials, and the auto-nozzle lift system results in
reliable, intricate dual-extrusion prints.
Dimensions
|
|
|
|
|
Ultimaker 2+
|
Ultimaker 2+ Extended
|
|
|
|
Dimensions with bowden tube and spool holder:
|
|
342 x 493 x 588 mm
(13.5 x 19.4 x 23.1 inches)
|
342 x 493 x 688 mm
(13.5 x 19.4 x 27.1 inches)
|
|
|
|
Weight:
|
|
11.3 kg (399 ounces)
|
12.3 kg (434 ounces)
|
|
|
|
|
|
|
|
|
|
|
Build volume:
|
|
223 x 223 x 205 mm
(8.8 x 8.8 x 8.1 inches)
|
223 x 223 x 305 mm
(8.8 x 8.8 x 12.0 inches)
|
|
|
|
|
|
|
Printer and printing properties
|
|
|
|
Assembly type
|
Pre-assembled
|
|
|
|
|
Layer resolution
|
0.25 mm nozzle: 150 to 60 micron
0.40 mm nozzle: 200 to 20 micron
0.60 mm nozzle: 400 to 20 micron
0.80 mm nozzle: 600 to 20 micron
|
|
|
|
|
Build plate
|
50 ˚C to 100 ˚C heated glass build plate
|
|
|
|
|
Build plate leveling
|
Assisted leveling process
|
|
|
|
|
Print technology
|
Fused Deposition Modeling (FDM)
|
|
|
|
|
Print head
|
Dual extrusion print head
|
|
|
|
|
Print core replacement
|
Swappable nozzle
|
|
|
|
|
Build speed
|
0.25 nozzle: up to 8 mm³/s
0.40 nozzle: up to 16 mm³/s
0.60 nozzle: up to 23 mm³/s
0.80 nozzle: up to 24 mm³/s
|
|
|
|
|
Print head travel speed
|
30 to 300 mm/s
|
|
|
|
|
Feeder type
|
Geared feeder
|
|
|
|
|
XYZ accuracy
|
12.5, 12.5, 5 micron
|
|
|
|
|
Nozzle diameter
|
Included are 0.25, 0.4, 0.6 and 0.8 mm nozzles
|
|
|
|
|
Nozzle temperature
|
180 °C to 260 °C
|
|
|
|
|
Nozzle heat up time
|
< 1 minutes
|
|
|
|
|
Build plate heat up time
|
< 4 minutes
|
|
|
|
|
Operating sound
|
50 dBA
|
|
|
|
|
|
|
Materials
|
|
|
|
System
|
Open filament system
|
|
|
|
|
Filament diameter
|
2.85 mm
|
|
|
|
|
Supported materials
|
PLA, ABS, CPE, CPE+, PC, Nylon, TPU 95A
|
|
|
|
|
Ultimaker filament
|
A spool of Ultimaker filament is 750 g
|
|
|
|
|
|
Requirements
|
|
|
|
Software
|
Cura, our free print preparation software
|
|
|
|
|
Supported OS
|
Free on macOS, Windows and Linux
|
|
|
|
|
Supported file types
|
STL, OBJ and 3MF
|
|
|
|
|
File transfer
|
Standalone 3D printing from SD card (included)
|
|
|
|
|
Operating ambient temperature
|
15 °C to 32 °C (59 °F to 90 °F)
|
|
|
|
|
Nonoperating temperature
|
0 °C to 32 °C (32 °F to 90 °F)
|
|
|
|
|
Input
|
100 - 240 V
4A, 50-60 Hz
221 W max.
|
|
|
|
|
Output
|
24 V DC, 9.2 A
|
|
|
|
|
|
|
Service and support
|
|
|
|
Warranty
|
You’ll enjoy a comprehensive 12 month warranty (excl. hot end).
|
|
|
|
|
Lifetime support
|
Expert technical support via email, phone, or from our global community is available to you for the lifetime of your printer.
|
|
|
|
|
Extended support
|
Online support pages, an easy to use app, extensive manuals, a detailed knowledgebase and so much more. You’re never far from the answers you need.
|
|
|
|
|
|
|
